Powerful & Rugged for Heavy Duty IBM System and Other Applications               Ethernet(10/100BaseT) and USB standard Connectivity Options: Coax, Twinax, Coax IPDS, Twinax IPDS,...
Tally-Dascom
$2,780.00
Availability: Many In Stock
Product Code: 4347-i09
printer
Tally-Dascom

Powerful & Rugged for Heavy Duty IBM System and Other Applications















  • Ethernet(10/100BaseT) and USB standard

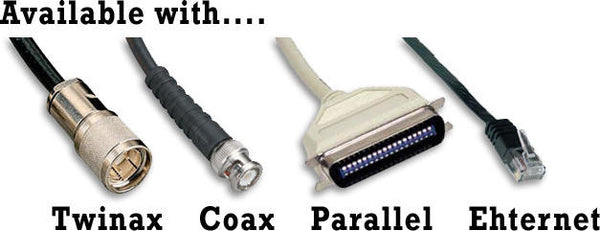

  • Connectivity Options: Coax, Twinax, Coax IPDS, Twinax IPDS, Ethernet IPDS, Ethernet TN3270e/TN5250e, Parallel, RS232 Serial

  • Prints up to 7 part forms

  • Full range of automatic features to minimize user intervention

  • Ideal for On-Demand and Batch applications with zero tear for no wasted forms

  • Straight through paper path for easy forms loading

  • Automatic forms loading and thickness adjustment

  • Dual Tractor Model with Front & Rear Tractors available

  • Compatible with IBM®, Windows and Unix systems and protocols

  • Standard 1 Year ON-SITE Warranty

  • Try-It & Buy-It Programs available

Overview

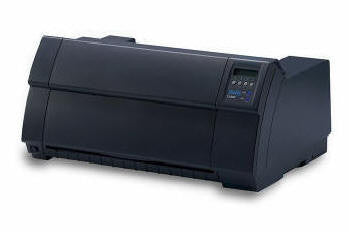

The Tally 4347-i09 printers represent high throughput print speeds, rugged durability and unsurpassed performance under the most extreme conditions.

These workhorse printers guarantee crisp, dark, clear and legible print thanks to the advanced engineering of the 24 pin print head. This head is built for long life and a heavy workload so even in the most challenging operating environment, you can be assured of the best in quality and performance.

Low running cost and durability in the harshest of print environments make these products excellent value for the money.

For more information on the Tally 4347-i09 Submit the Form Below

Click here for the Tally 4347-i09 Datasheet

Available Configurations

MODEL NUMBER

DESCRIPTION

Tally 4347-i09

Single Tractor Model



Click here to compare the 4347-i09 and the 4347-i11 Printers

Specifications

ITEM

4347-i08 Multiform Printer

Print Speed

High Speed Quality: 12 cpi
High Speed Quality: 10 cpi

Data Print Quality: 10 cpi
Near Letter
Quality: 10 cpi



- > 960 CPS
- > 800 CPS
- > 667 CPS
- > 222 CPS

Throughput

640 pages/hour - DP Quality 10 cpi (ECMA 132)

Character Density

5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi (Emulation dependent)

Line Density

2, 3, 4, 6, 8, 12 lpi

Number of Copies

Up to 7 part forms - original plus 6 copies

Paper Type

Continuous forms

Paper Size

Width:  3 inch minimum to 16.5 inch maximum
Length: 3 inch minimum to 22 inch maximum

Paper Weight

60 to 120 gsm

Workload

48,000 pages per month

Print head Life

500 million characters

Memory

128 kb

Standard Connectivity

Bi-directional parallel plus Ethernet 10/100BaseT with 128 kb buffer

Optional Connectivity

Twinax / Coax / IPDS, Ethernet IPDS, TN5250e/TN3270e, RS232 Serial Interface

Standard Emulation

IBM Proprinter, Epson LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP

Optional Emulation

MT660, Printronix, P6000, HP2564C

Optional Graphics Emulation

IGP/QMS  Code V Magnum

Fonts

HS Draft, Draft, Copy Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir, Kix/Royal, OCR A*, OCR B*, 22 Bar Codes & scalable LCP, Intelligent Mail Bar Code

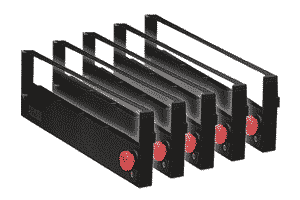

Consumables (Ribbon)

20 million characters*

Standard Paper Handling

Push tractor with paper parking and Auto Gap Alignment (AGA)

Optional Paper Handling

2nd front tractor (user installable), paper pedestal, basket, cutting device

4347-i08-2T Dual Tractor Model Shown with 2nd Front Push Tractor

4247-i08-2T with optional front push tractor.

Physical Characteristics Dimensions
Weight

  11 x 24.6 x 17 inches  (HxWxD)

Approximately 42 lbs

Power Voltage

AC 120V and 230V (selectable)

Acoustics

54 dB(A)

Warranty

One Year ON-SITE next business day

Datasheet

Click here for the
Tally 4347-i08 Datasheet


*NOTE: For OCR applications it is recommended that your readers are tested with print samples supplied DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase.  The quoted consumable life is the average for the printer when used under normal operating conditions.
