I-O Corporation TXP Plus - Attaches a Parallel or Serial Printer to a 5250 Twinax Host

Connect Your Parallel Interface Laser, Matrix or Barcode Label Printer to your IBM iSeries AS/400 Over Twinax PLEASE NOTE: The I-O Corporation TXP Lite+ and CXP Lite Printer Interfaces are...

I-O Corporation

$595.00

Availability: Out Of Stock

Product Code: IO-TXSPLUSR

Product Type: Printer Interface

Vendor: I-O Corporation

More Information
Reviews
Custom Tab

Connect Your Parallel Interface Laser, Matrix or Barcode Label Printer to your IBM iSeries AS/400 Over Twinax

PLEASE NOTE: The I-O Corporation TXP Lite+ and CXP Lite Printer

Interfaces are no longer manufactured. Please call us at (800)597-2525 to discuss availability and other suitable printer interfaces such as the Praim PR165eSHA Twinax-to-Parallel Printer Interface and equivalent IP print servers.

Overview

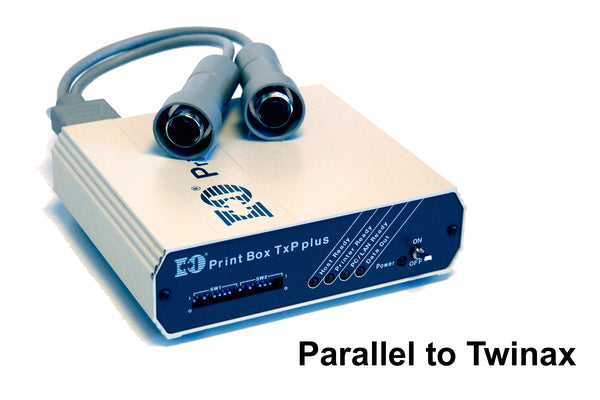

The I-O Print Box TXP+ turns any parallel interface ASCII laser, dot-matrix or barcode label printer into a powerful Twinax printer. The TXS+ does the same for Serial interface printers.

If you need IPDS Printing click here for the 5765e IPDS Print Server Gateway.

Features

Attaches virtually any PC printer with a parallel serial port to an IBM Power System, System i, i5, iSeries AS/400, System/3X, or 53X4 Remote Controller with a standard Twinax (or balun) connection, or to a 3270-type mainframe host or 3174 type controller with a standard coax (or balun) connection.

Setup is quick and easy through Host/PC download commands, and on-board DIP switches.
Comes with built-in intelligent printer sharing capabilities, allowing the attached printer to be automatically shared between Twinax/Coax and PC/LAN users at no extra cost.
Comes with the industry's best 3812-1, 4214, 5224/25/56 Twinax and 3812-1, 4214, 4224, 4234, 3287/68/62 coax printer emulations (all non-IPDS).
Supports multiple fonts, duplex printing (Twinax only), Automatic Print Orientation, Computer Output Reduction, and other features. APF/ BGU printing is available across all IBM matrix printer emulations (Twinax).
Comes with drivers for a wide variety of popular PC printers including Hewlett-Packard PCL-type laser, Epson and IBM dot-matrix printers. In addition, laser printers can be driven as IBM 5225 line printers.

[Twinax Features][Coax Features][Specifications][Benefits]

Click here for more information on Twinax and Coax Interfaces

If you are only using a Matrix printer and DO NOT need integrated printer sharing, please click on the link here for information on the more economical PrintBox TXS/CxP Lite.

IBM Features:

Twinax AS/400

Attaches to IBM Power System, System i, i5, iSeries AS/400 or System/3X Hosts, or 5X94 Controllers via Twinax attachment

Supports IBM 3812-1 (SCS), 4214, 5224/25/56 Printer Emulations

APO and COR

Supports duplex selection of OS/400 beginning with V2R3 and OfficeVision/400

Supports Multiple Fonts via IBM Typestyle Numbers

Coax 3270

Attaches to IBM System z, zSeries, 30XX, 43XX, or 937X Host, or 3x74 or 3276 Controller

IBM 3812-1, 4224, 4214, 3287/68/62 Printer Emulations (all non-IPDS)

LU3 (DSC) and LU1 (SCS) Mode Printing

APO and COR for laser printers

Supports All Applicable IBM RPQs

Additional Features

Features	Benefits
IBM Compatibility	Offers complete IBM compatibility for 3812-1 (non-IPDS) and 5224 printer emulations.
Easy Setup	Host or PC download configuration "on the fly". PC download or push-button configuration allows setup of the interface without being connected to the 3270 host, for pre-programming of the interface.
Intelligent Host/PC Printer Sharing	Attach a PC and a Host to the same printer. Automatically monitors both input lines for data and selects the next incoming stream without user intervention.
I-O Command Pass-Thru™	Allows access to all user-programmable printer functions.
Host/PC Download Commands	Allows printer configuration customization.
Custom User Strings	Allows the user to assign commonly used printer commands to simple identifiers which can be sent to the printer prior to printing a document.

Specifications

Item	Description
Host Systems	Twinax (5250) or Coax (3270)
Interface	IBM Twinax (TxP Plus) or Coax (CxP Plus) to serial
Power	9V wall mount transformer
Environment	Temperature: +40° to 110° F (+5 to 42° C) Relative humidity: 20% to 85% Optimum: 70° +/- 15° F (24° +/- 8° C)
Dimensions	6 1/2" x 2 1/8" x 5 1/2" (16,5 x 5,4 x 14 cm)
Approvals	FCC A; CISPER 22 class A

Any Product types that You want - Simple, Configurable, Bundled and Grouped Products
Downloadable/Digital Products, Virtual Products
Inventory Management with Backordered items
Customer Personalized Products - upload text for embroidery, monogramming, etc.
Create Store-specific attributes on the fly
Advanced Pricing Rules and support for Special Prices
Tax Rates per location, customer group and product type
Detailed Configuration Options in Theme Admin Penl

Connect Your Parallel Interface Laser, Matrix or Barcode Label Printer to your IBM iSeries AS/400 Over Twinax

PLEASE NOTE: The I-O Corporation TXP Lite+ and CXP Lite Printer

Interfaces are no longer manufactured. Please call us at (800)597-2525 to discuss availability and other suitable printer interfaces such as the Praim PR165eSHA Twinax-to-Parallel Printer Interface and equivalent IP print servers.

Overview

The I-O Print Box TXP+ turns any parallel interface ASCII laser, dot-matrix or barcode label printer into a powerful Twinax printer. The TXS+ does the same for Serial interface printers.

If you need IPDS Printing click here for the 5765e IPDS Print Server Gateway.

Features

Attaches virtually any PC printer with a parallel serial port to an IBM Power System, System i, i5, iSeries AS/400, System/3X, or 53X4 Remote Controller with a standard Twinax (or balun) connection, or to a 3270-type mainframe host or 3174 type controller with a standard coax (or balun) connection.

Setup is quick and easy through Host/PC download commands, and on-board DIP switches.

Comes with built-in intelligent printer sharing capabilities, allowing the attached printer to be automatically shared between Twinax/Coax and PC/LAN users at no extra cost.

Comes with the industry's best 3812-1, 4214, 5224/25/56 Twinax and 3812-1, 4214, 4224, 4234, 3287/68/62 coax printer emulations (all non-IPDS).

Supports multiple fonts, duplex printing (Twinax only), Automatic Print Orientation, Computer Output Reduction, and other features. APF/ BGU printing is available across all IBM matrix printer emulations (Twinax).

Comes with drivers for a wide variety of popular PC printers including Hewlett-Packard PCL-type laser, Epson and IBM dot-matrix printers. In addition, laser printers can be driven as IBM 5225 line printers.

[Twinax Features][Coax Features][Specifications][Benefits]

If you are only using a Matrix printer and DO NOT need integrated printer sharing, please click on the link here for information on the more economical PrintBox TXS/CxP Lite.

IBM Features:

Twinax AS/400

Attaches to IBM Power System, System i, i5, iSeries AS/400 or System/3X Hosts, or 5X94 Controllers via Twinax attachment

Supports IBM 3812-1 (SCS), 4214, 5224/25/56 Printer Emulations

APO and COR

Supports duplex selection of OS/400 beginning with V2R3 and OfficeVision/400

Supports Multiple Fonts via IBM Typestyle Numbers

Coax 3270

Attaches to IBM System z, zSeries, 30XX, 43XX, or 937X Host, or 3x74 or 3276 Controller

IBM 3812-1, 4224, 4214, 3287/68/62 Printer Emulations (all non-IPDS)

LU3 (DSC) and LU1 (SCS) Mode Printing

APO and COR for laser printers

Supports All Applicable IBM RPQs

Additional Features

Features

Benefits

IBM Compatibility

Offers complete IBM compatibility for 3812-1 (non-IPDS) and 5224 printer emulations.

Easy Setup

Host or PC download configuration "on the fly". PC download or push-button configuration allows setup of the interface without being connected to the 3270 host, for pre-programming of the interface.

Intelligent Host/PC Printer Sharing

Attach a PC and a Host to the same printer. Automatically monitors both input lines for data and selects the next incoming stream without user intervention.

I-O Command Pass-Thru™

Allows access to all user-programmable printer functions.

Host/PC Download Commands

Allows printer configuration customization.

Custom User Strings

Allows the user to assign commonly used printer commands to simple identifiers which can be sent to the printer prior to printing a document.

Specifications

Item

Description

Host Systems

Twinax (5250) or Coax (3270)

Interface

IBM Twinax (TxP Plus) or Coax (CxP Plus) to serial

Power

9V wall mount transformer

Environment

Temperature: +40° to 110° F (+5 to 42° C) Relative humidity: 20% to 85% Optimum: 70° +/- 15° F (24° +/- 8° C)

Dimensions

6 1/2" x 2 1/8" x 5 1/2" (16,5 x 5,4 x 14 cm)

Approvals

FCC A; CISPER 22 class A
