IBM InfoWindow II 3488 -
A Modular Multi-SessionTwinax Display
for the iSeries, AS/400 and AS/36

Overview

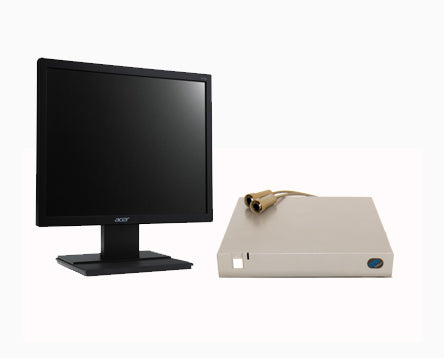

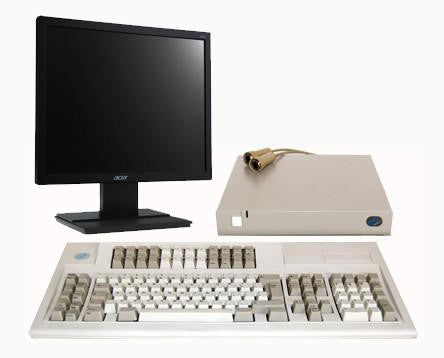

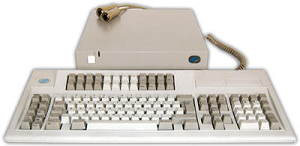

The IBM InfoWindow II 3488 is a modular Twinax Terminal with Keyboard that uses a standard SVGA Color Monitor as the display instead of an "all in one" terminal.  This allows you to replace the monitor portion when the screen fades or fails, just as you would replace a monitor on a PC.

It is a direct replacement for ALL other IBM InfoWindow Terminals like the 3476, 3477, 3486 and 3487.  It connects with the same Twinax connection to your AS400, iSeries or System/36 as these other models do.

The IBM 3488 is only available as a refurbished product. Other refurbished Twinax terminals are available.  Please click on the following links:

• IBM 3488 Modular Color Twinax Terminal

• I-O Corporation 2677m Modular Color Twinax Terminal

• CLI 5476, 5477 & 5488 Modular Color Twinax Terminals

• Decision Data LM488C Modular Color Twinax Terminals

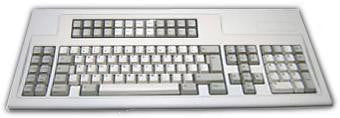

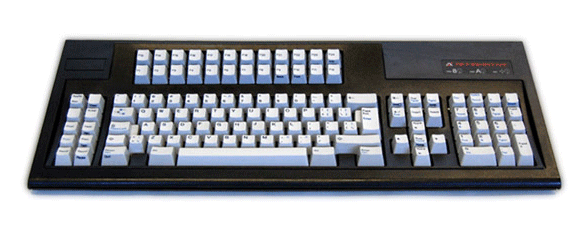

We also have replacement keyboards for all IBM InfoWindow Twinax Terminals. Click here for replacement keyboards for your IBM 3476, 3477, 3486, 3487, 3488 and 3489 Twinax Terminals

Click Here for More Information on the IBM 3488 Modular Twinax Workstation

Features

• Supports attachment of many IBM P and G series monitors
  as well as most standard SVGA Color Monitors

• Supports 24, 32, 43 and 49 rows by 80 columns and 27 rows
  by 132 columns (monitor-dependent)

• User-selectable foreground and background colors

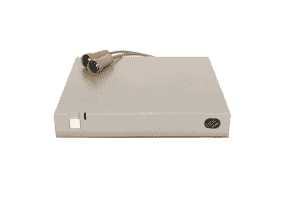

• Modular logic unit can be desk or wall-mounted

• Two keyboards available:
  122-key 24-Command Key keyboard and 102-key 12-Command Key keyboard

• Supports four display sessions and one printer session

• Shared addressing: all display sessions use (share) a single twinaxial address

• Variable vertical or horizontal split screen

• Enhanced user interface with IBM mouse and/or light-pen support

• Available refurbished only
